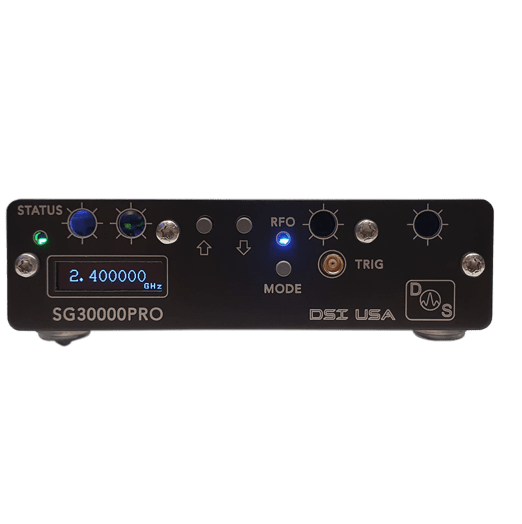

DS INSTRUMENTS SG30000PRO Premium Signal Generator (0.05 – 30GHz)

RF output covering 0.05 – 30GHz (single precision 2.92mm port)

Calibrated power control (LF – 22Ghz): -45dBm to +15dBm (step & vernier)

Calibrated power control (22 – 30GHz): -25dBm to +15dBm (step & vernier) typical

Calibrated power (LF-22GHz band) absolute accuracy: ±1.0dB typical

Calibrated power (22-30GHz band) absolute accuracy: ±1.5dB typical

Digital attenuator step size: 0.5dB

Variable attenuator resolution (vernier control): ~0.05dB

Internal harmonic filtering matrix (500MHz – 30GHz)

Excellent phase noise: -92dBc at 20GHz at 10KHz offset

Extremely small frequency step size: 2Hz
