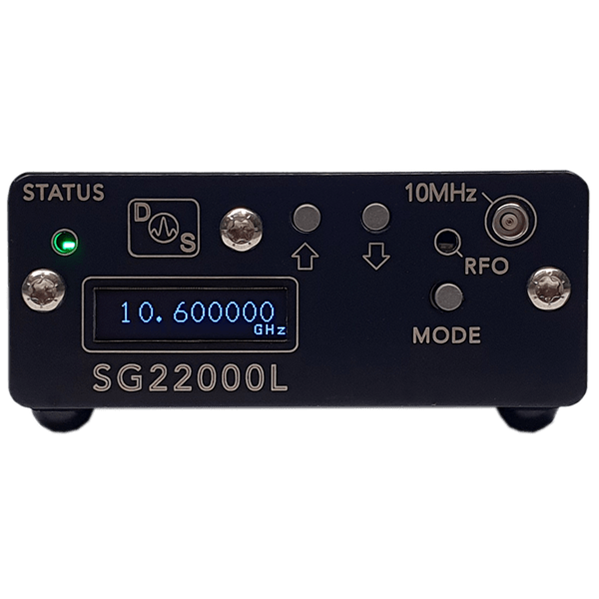

DS INSTRUMENTS SG22000L Wideband Microwave Generator (20 – 22000MHz)

Total Frequency Coverage: 20 – 22000MHz (24GHz at reduced performance)

Band 1 Range: 20 to 13000MHz

Band 1 Power: -20 to +10dBm (calibrated 0.5dB steps & fine-tune vernier)

Band 2 Range: 13000 to 22000MHz

Band 2 Power Level +15dBm typical

Phase Noise: 6GHz at 10KHz offset: -85dBc/Hz

Phase Noise: 12GHz at 10KHz offset: -78dBc/Hz

Phase Noise: 18GHz at 10KHz offset: -73dBc/Hz

Min frequency step size: 2Hz

Dimensions: 2.75″ x 1.25″ x 4.15″

Input Voltage: 5V at 1.0A (USB-C)

Internal Reference: 10MHz ±280PPB TCXO
