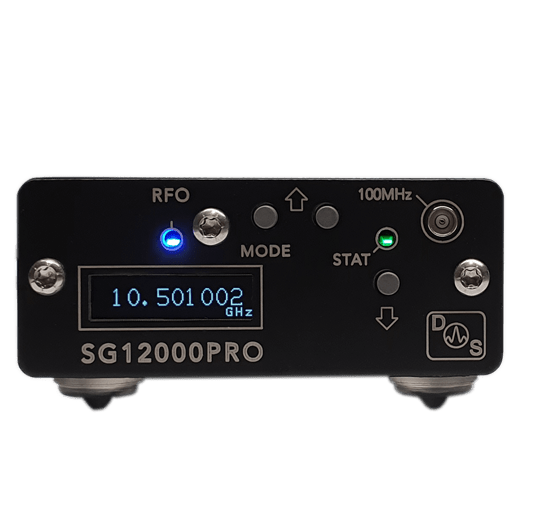

DS INSTRUMENTS SG12000PRO Puresine Generator (50-13000 MHz)

Highest Harmonic Levels: -30dBc typical (1-13GHz)

Frequency Range: 50-13000 MHz (10-15000MHz uncalibrated mode)

Power Output Level: -45dBm to +15dBm

Phase Noise at 12GHz: -94dBc at 10KHz offset

Minimum frequency step size: 2Hz

Internal Attenuator (digital 0-6GHz): 64dB (250 x 0.25dB Steps)

Internal Attenuator (digital 6-13GHz): 64dB (128 x 0.50dB Steps)

Internal Attenuator (variable 0-15GHz): ~15dB (10 bit DAC)

Dimensions: 2.75″ x 1.25″ x 5.15″

Input Voltage: 5V Standard USB-C (1.50A max)

Output Impedance: 50 Ohm

RF Connector: Premium gold 18GHz microwave SMA
