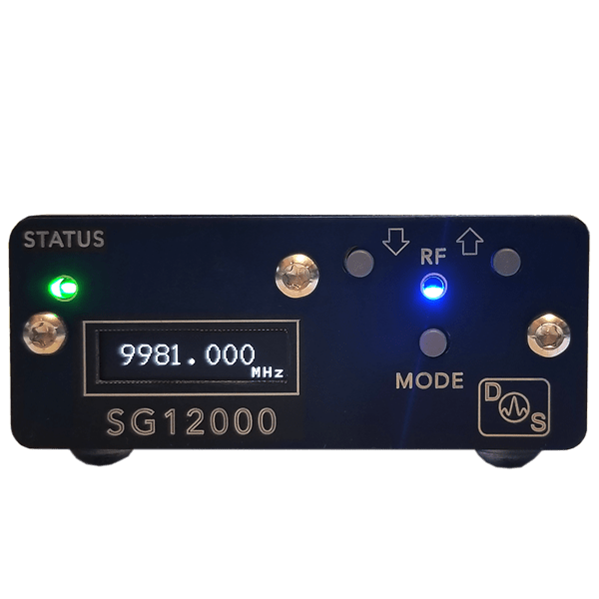

DS INSTRUMENTS SG12000 Signal Generator (25MHz – 12GHz)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency range: 25MHz – 12GHz
Calibrated power level range: -20dBm to +10dBm
Uncalibrated power level range: -35dBm to +12dBm typical
Power control resolution: 0.5dB steps + 0.1dB vernier (variable attenuator)
Dimensions: 2.75″ x 1.25″ x 3.15″
Frequency step size: 40-6000Hz (depending on output frequency)
Phase noise at 6GHz: -72dBc at 10KHz offset
Power Input: 5V Standard USB-C (0.75A)
Output Impedance: 50 Ohm
RF Connectors: Gold 18GHz SMA
