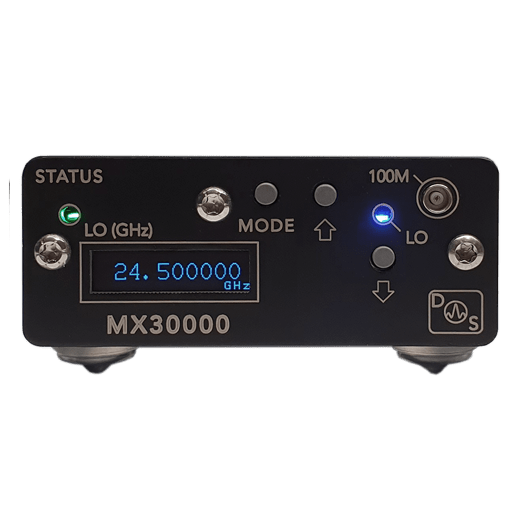

DS INSTRUMENTS MX30000 Mixer And LO Generator (MHz - 8GHz, 15 – 30GHz)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Integrated 18 – 30GHz programmable local oscillator
IF range: 1MHz to 8GHz
RF range: 15 – 30GHz
High input P1dB > +10 dBm
LO phase noise at 26GHz (10KHz offset): ~85 dBc
Low conversion loss: 9-12dB
Max RF input power: +17dBm
Typical IP3: 20dBm
LO frequency step size: 10Hz
Typical LO to RF isolation: 45dB
Typical LO to IF isolation: 35dB
Return loss: >10 dB typical
Reference Frequency: ±280PPB 10MHz TCXO & 100MHz VCXO
