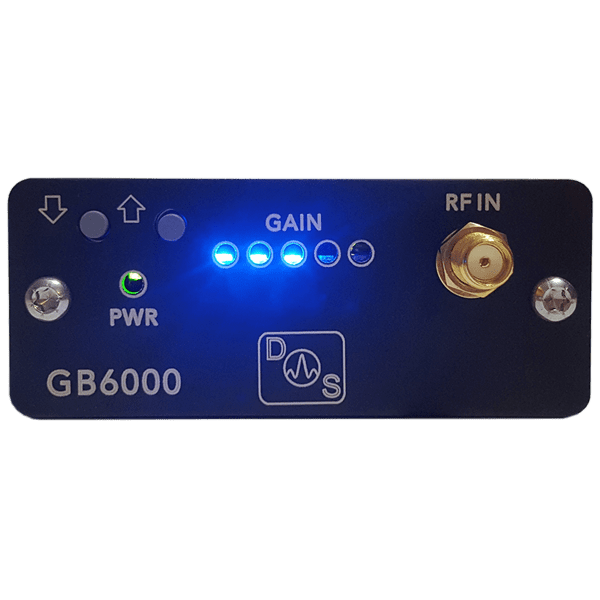

DS INSTRUMENTS GB6000L Variable Low-Power Amplifier (10MHz – 6GHz, +28dB)
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency Range: 10MHz – 6GHz
Amplifier Gain (Max setting): +28dB Typical
Amplifier Gain (Min setting): 0dB Typical
p1dB: +22dBm
Noise Figure: 4dB
IP3: 34dBm
Connectors: 18GHz Microwave Gold SMA
Gain step size: 0.5dB
Return Loss: > 12dB
Excellent gain flatness
50 Ohm matched (SMA)
Standard USB-C 5v power input
Gain control buttons
Dimensions: 2.75″ x 1.25″ x 2.15″
