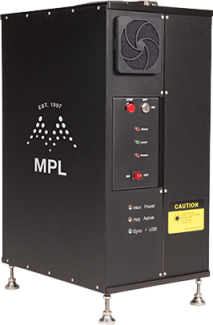

Droplet MiniMPL Atmospheric laser measuring instrument (Typically to 15 km; 532 nm)

Range Resolution: 5 / 15 / 30 / 75 m (software programmable)

Minimum Range: 100 m

Accumulation Time: 1 sec – 15 mins

Detection Range: Typically up to 15 km

Polarization: Standard

Scanning: Optional

Optics:

Laser Wavelength: 532 nm

Laser Pulse Energy: 3 – 4 μJ @ 2500 Hz

Eye Safety: ANSI Z136.1 (2000); IEC 60825

Receiver Diameter: 80 mm

Pump Laser Diode: Guaranteed 10,000 hours

Detector: Fiber coupled; user replaceable

Dimensions:

Size: 240 x 305 x 480 mm

Weight: 13 kg

Data:

Operating System: Windows 7 / 10

Computer Interface: USB

Data Transfer: LAN Ethernet

Environment:

Temperature: +17°C to +35°C (operating)

Humidity: 0 – 80%

Power:

Supply: 110 – 240 VAC, 50 – 60 Hz

Consumption: 100 W
