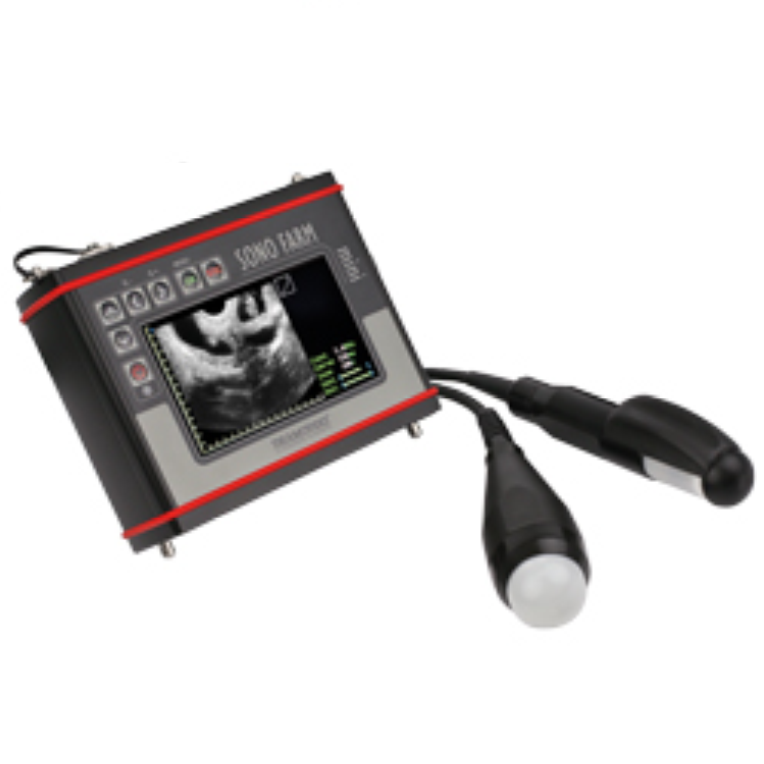

DRAMINSKI SonoFarm Mini Ultrasound Scanner (with 02 probes: rectal and abdominal)

Dimensions: 17.5x14.5x6.0cm

Unit weight: 1010g

Probe weight: 250g

Battery weight: 280g

Display modes: B Mode – real time imaging

Frequency and type of probes: rectal and abdominal probes 5.0MHz

Penetration depth:

• Rectal probe: 7, 8, 10 and 12 cm

• Abdominal probe: up to 25cm

Scanning angle:

• Rectal probe: 180°

• Abdominal probe: 90°

Display: 5.0", LCD LED

Keyboard: Membrane

Power supply: External battery pack Li-Ion 14.4 V, 3.1Ah

Continuous operation on fully charged battery: about 6h

Charging time: 2.5h

Battery exhausted indicator: automatic – a sound signal and a graphical indicator

Operating temperature range: -15°C~45°C

Storage temperature range: 0°C~45°C

The set includes:

• The device with LCD screen and keyboard

• 02 probes: 01 rectal probe and 01 abdominal probe (For SFM2 AR)

• A set of belts: neck and waist belts

• External battery pack: Li-Ion 14.4V/3.1A

• Dedicated battery pack charger (with wires)

• Transport suitcase with a foam filler

• Ultrasonic Gel

• The manual
