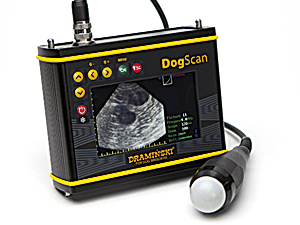

DRAMINSKI DogScan Veterinary ultrasound scanners

Dimensions: 17,5 x 14,5 x 6,0 cm

Unit weight: 1010 g

Probe weight: 250 g

Battery weight: 280 g

Display modes: B Mode – real time imaging

Frequency and type of probes: sector, mechanical abdominal 3.0 – 7.0 MHz

Penetration depth: Up to 25 cm

Scanning angl: 90°

Display: 5,0″, LCD LED

Keyboard: Membrane

Power supply: External battery pack Li-Ion 14.4 V, 3.1Ah

Continuous operation on fully charged battery: about 6 h

Charging time: 2,5 h

Battery exhausted indicator: automatic – a sound signal and a graphical indicator

Operating temperature range: -15°C to +45°C

Storage temperature range: 0°C to +45°C

The set includes:

the device with LCD screen and keyboard,

5.0 MHz sector probe, abdominal,

a set of neck belts,

external battery pack: Li-Ion 14.4V/3.1A,

dedicated battery pack charger (with wires),

transport suitcase with a foam filler,

ultrasonic Gel,

the manual.

Datasheet
