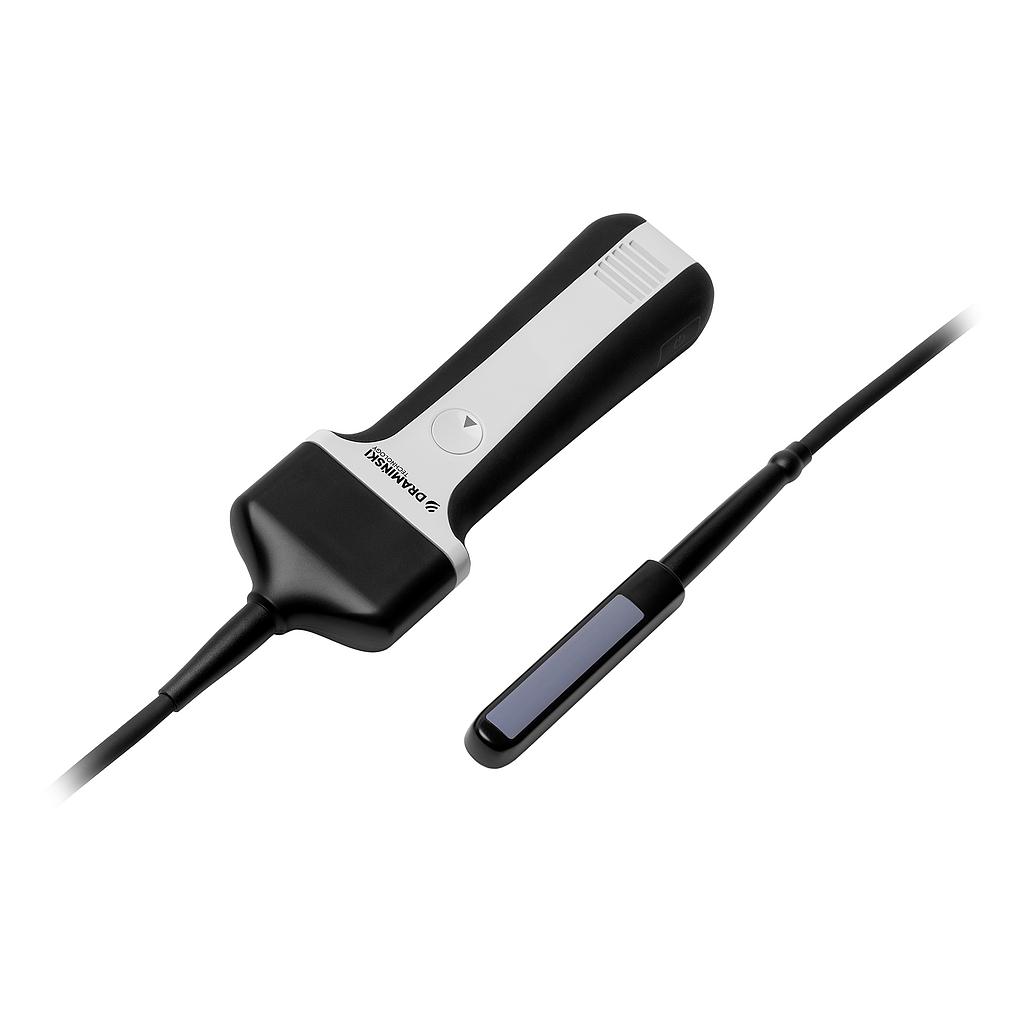

DRAMINSKI Airscan Wireless Ultrasound Scanner (2.6-12.5 MHz)

Imaging modes

• B Mode

• B+B Mode

• Color Doppler (CF)

• Power Doppler (PD)

Frequency range: 2.6-12.5 MHz(depends on probe)

Probes

• Rectal linear 4.2-12.5 MHz

• Rectal convex 2.6-5 MHz (FIXED probes!)

Dynamic Focus: No (Plane Wave Imaging)

Image management:

• Freeze

• Zoom 100 – 300%

• Full screen

• Invert left-right

• Saving images

• Saving cine loops

Imaging adjustment

• Dynamic range

• LuciD

• Tissue Harmonic Imaging (THI)

• Spatial Compounding (SC)

• IQ Scan

• TGC

Presets:

• Bovine (Rectal linear)

• Presets for different species (Rectal convex)

Postprocessing: Yes (LuciD)

Measurements

• Basic: Distance, Grid

• Age of fetus

• Icons: the animal body part and the probe

• Annotations

Workflow tools

• Freeze Button on the probe

• Quick mount system

Display: No display

Control panel: Freeze Button and touchscreen of the mobile device

Memory: Depends on mobile device memory

Exported file format: JPEG, PNG, BMP, MP4, DICOM

Exporting data method: From application to mobile device gallery

Multimedia ports: No

WiFi connection to mobile devices: Yes

Power supply: Built-in battery

Battery operating time: Up to 4 h 30 mins. (Operation: max. 30 mins. with 10 mins resting time)

Battery charging time: Up to 6 h

Booting time: 5 s

Dimensions: Width 7.4 cm, Height 21.7 cm, Depth 4 cm (Length with linear probe 234.5 cm, with convex probe 244.5 cm)

Weight (with probe and battery): Approx. 0.6 kg

Ingress Protection (IP) rating: IPX1

Accessories

• Wheeled high stand

• Waist belt with quick mount system

• Standoff
