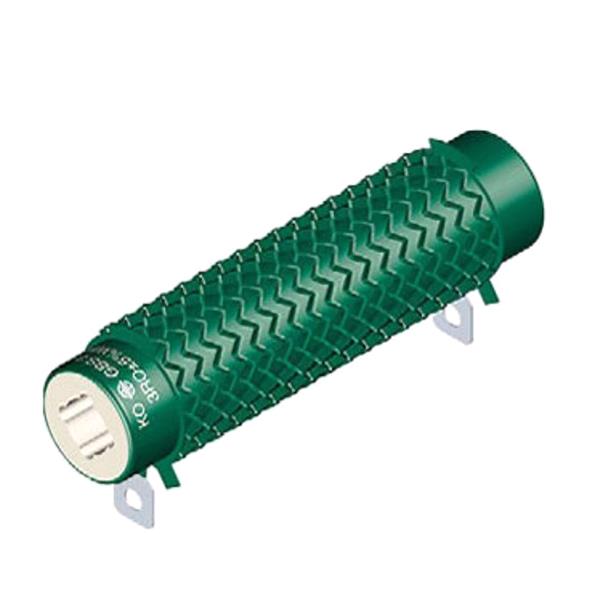

Vishay Draloric GBS303P14158JLX000 Edgewound Tubular Resistors 200watts 0.15ohm 5%
ManufacturerVishay Draloric(View more products from this manufacturer)
ModelGBS303P14158JLX000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 133 mm
Diameter: 37 mm
Tolerance: 5 %
Resistance: 150 mOhms
Technology: Wirewound
Application: High Power
Unit Weight: 351.149 g
Power Rating: 120 W
Mounting Style: Chassis Mount
Voltage Rating: 1 kVAC/DC
Termination Style: Solder Lug
Temperature Coefficient: 650 PPM / K, 750 PPM / K
Maximum Operating Temperature: + 350 C
Minimum Operating Temperature: - 55 C
