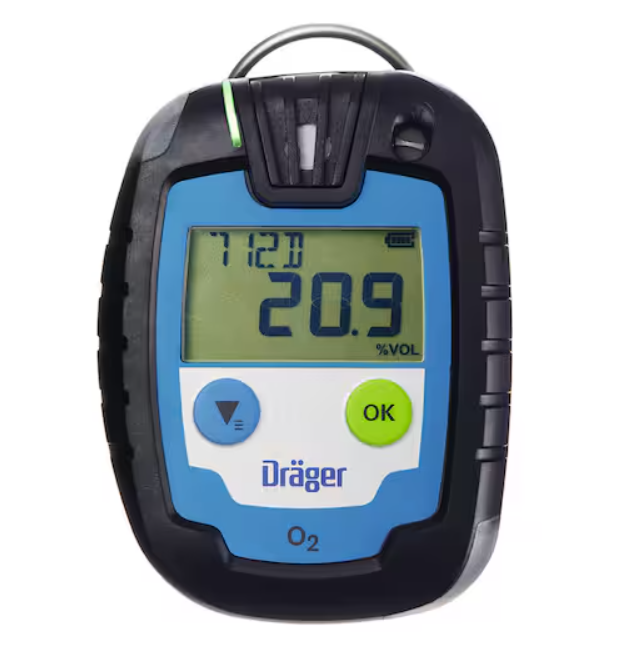

Drager Dräger Pac 6000 O2 Single Gas Detectors (0 – 25 Vol.-%)

Measuring range: 0 – 25 Vol.-%

Alarm thresholds A1/A2: 19.5 / 23.5 Vol.-%

Dimensions (without clip) (W x H x D): 2.5 x 3.3 x 0.8 in, 64 x 84 x 20 mm

Weight: Approx. 3.7 ounces, 106 g (4.0 ounces, 113 g with clip)

Device service life: 2 years from first activation

Battery service life: 2 years (O2 min. 12 months)

Degree of protection: IP68

Air pressure: 700 to 1,300 hPa

Air humidity: 10 to 90% relative humidity, non-condensing

Temperature: -22 °F to 131 °F, -30 °C to +55 °C (briefly down to -40 °F/ -40 °C for 1 hr, depending on sensor)

Approvals: cCSAus, IECEx, ATEX, CE
