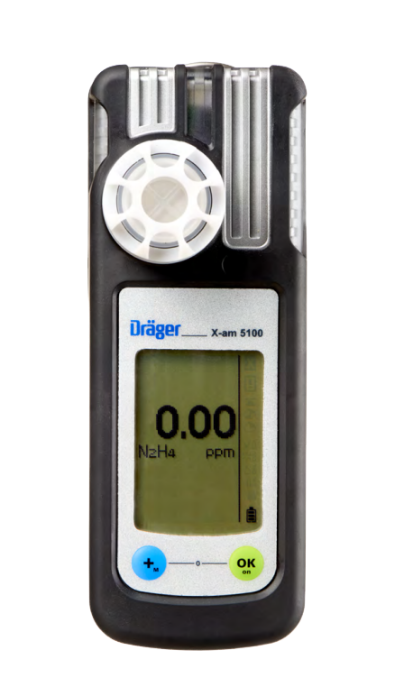

Drager X-am 5100 Single-gas detector for HF, HCl, H2O2 or hydrazine (Main unit only, not included sensor)

Dimensions (H x W x D): 48 x 130 x 44 mm (1.89 x 5.12 x 1.73 in)

Weight: 220 – 250 g (7.8 – 8.8 oz)

Ambient conditions

Temperature: - 20 to + 50 °C (-4 to 122 °F)

Pressure: 700 to 1300 mbar (20.7 to 38.4 inch Hg)

Relative humidity: 10 to 90 % RH

Alarms

Visual: 360°

Audible: Multi-tone > 90 dB at 30 cm (1 ft)

Vibration

Ingress Protection: IP 54

Operating times: ~150 h (NiMH rechargeable battery)

Charging times: < 4 h

Data logger: Retrievable using an infrared interface > 1000 h at a recording interval of 1 value per minute

Consisting of: basic device with an integrated data logger, manufacturer’s certificate and calibration certificate.

Power supply and sensor selection must be specified at time of purchase.

Datasheet

3 matching sensors

DrägerSensor XS EC H2O2 6809170

DrägerSensor XS EC HF/HCl 6809140

DrägerSensor XS EC Hydrazine 6809190
