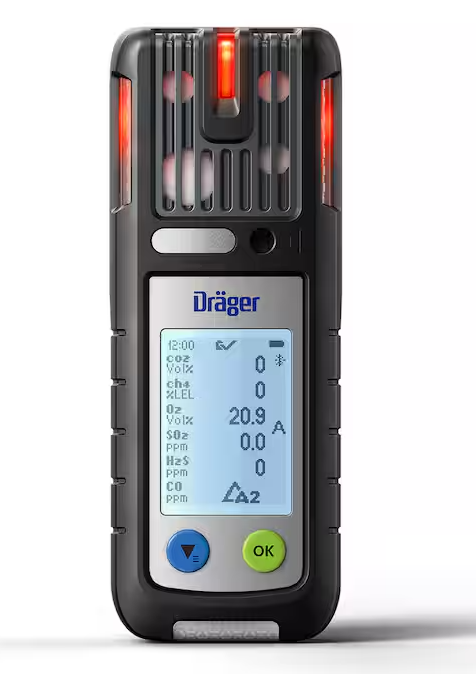

Drager X-am 5800 Multi Gas Detectors (Main unit, not included sensor)

Dimensions (H x W x D): 130 x 48 x 44 mm (5.12 x 1.89 x 1.73 in)

Weight: typically 220 to 250 g (7.76 to 8.82 oz), depending on sensor equipment

Housing: robust 2-component housing

Display: Matrix display with high resolution

Ambient conditions

Temperature: -20 to +50°C (-4 to 122 F) (Measurement and storage) | -40 to +50°C (-40 to 122 F) (Use in potentially explosive atmospheres)

Pressure: 700 to 1,300 mbar (Measurement)

800 to 1,100 mbar (Use in potentially explosive atmospheres)

Relative humidity: 10 to 95 % r.h. | 5 to 95 % r.h. short term

Protection class: IP 68

Alarms

Visual: 3 LED 'red' (gas alarms) | 3 LED 'yellow' (device alarms)

Acoustic: Multi-tone > 90 dB at 30 cm (12 in)

Vibration

More technical specifications

Energy supply: NiMH battery, rechargeable, replaceable by user

Bluetooth®:

Bluetooth 5.0 (disabled for some countries outside the EU and outside North America, but can be retrofitted. Contact DrägerService.)

Operating times:

For CatEx SR and PID sensor: typical 12 h (Bluetooth® active),

For IR sensor: typical 50 h (Bluetooth® active)

Operating with electrochemical sensors only: typical 100 h

Charging time: < 4 h

Ready for Measurement < 60 s after switch-on (CatEx SR and electrochemical sensors)

Data logger: Application of an optimised data compression method with high

accuracy and large storage capacity. (Typically data compression >90 % compared to the traditional data logger concept with adjustable interval)

Approvals

Marking Explosion protection:

ATEX: I M1 Ex da ia I Ma | II 1G Ex da ia IIC T4 Ga (usable in Ex-Zone 0)

IECEx: Ex da ia I Ma | Ex da ia IIC T4 Ga (usable in Ex-Zone 0)

cCSAus (USA and Canada): CSA approval cCSAus

Class I, Zone 0, AEx da ia IIC T4/T3 Ga

Class I, Division I, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

EAC: Contact Dräger for availability

Directives: 2014/34/EU (ATEX), 2014/53/EU (RED), 2011/65/EU (RoHS)

Consisting of: Basic device (with data logger), delivery with manufacturer and calibration certificate.
