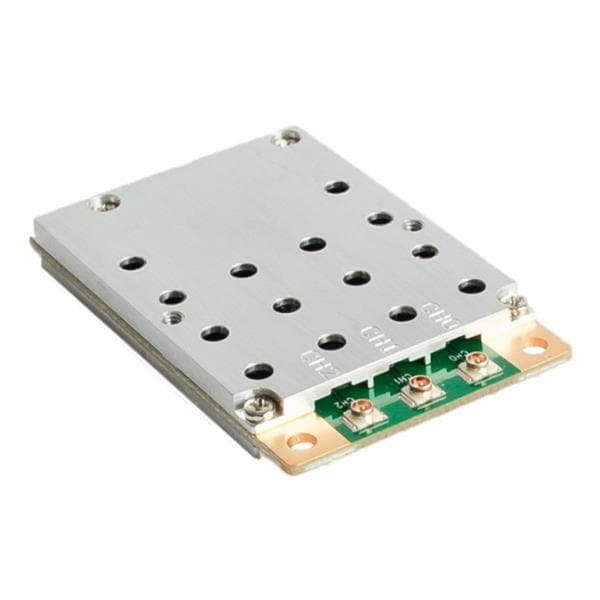

Doodle Labs ACM-DB-3U WiFi Modules Industrial Wi-Fi Transceiver. IEEE802.11ac, 3x3 MIMO, miniPCIe, Rugged/Military use, -40 to +85 C temp, U.FL connector

Security: AES, TKIP, WAPI, WEP

Data Rate: 1.3 Gb/s

Frequency: 2.412 GHz to 2.484 GHz, 5.18 GHz to 5.825 GHz

Dimensions: 30 mm x 50 mm x 7 mm

Unit Weight: 26.688 g

Output Power: 27 dBm, 29 dBm

Interface Type: mPCIe

Protocol Supported: 802.11 ac

Modulation Technique: 16 QAM, 64 QAM, 256 QAM, BPSK, CCK, QPSK

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: U.FL

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: PCIe
