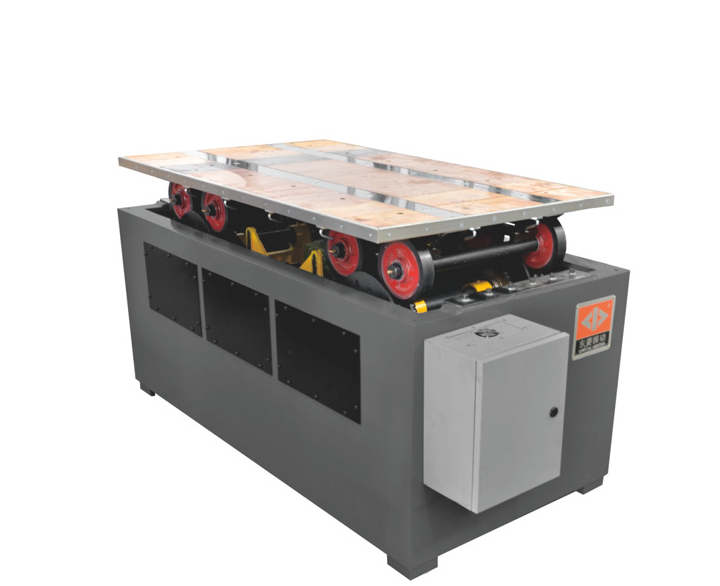

Dongling SY50-2000 Transport Simulation Tester (2000 kg, 20 ~ 40km/h)

Max. Load (kg): 2000

Vibration Waveform: Broad-brand Random Vibration

Simulation of the Truck Speed: 20 ~ 40km/h

Simulation of the Road

Intermediate pavement of class-3 highway

Intermediate or low-type pavement of class-4 highway

Time Acceleration Level: 1:1 (To be customized)

Height of Specimen COG (mm): <700

Working Table (mm): 2700 x1800

Power Consumption (kVA): 30

Dimension (L×W×H: mm): 3000x2200x1600

Weight (kg): 7550

Power Supply: Three-phase 380V, 50/60Hz

Working Environment: Temperature range 0~40°C

Humidity range: ≤80% (non condensing)

Remark

1. The size of working table can be customized upon request.

2. In time acceleration level, the 1:4 type is referred to SY50A, and the 1:6.3 type represents SY50B

SY-50 Transport Simulation Tester Catalog
