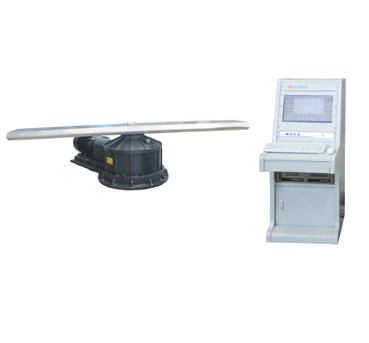

Dongling SY31-100 Centrifugal Constant Acceleration Tester (30-1000 m/s2, 2000mm)

Max. Load (kg)/ Position: 100x2

Acceleration (m/s2): 30-1000

Specimen Size (L×W×H: mm): 400x400x300

Specimen-Installed Radius (mm): 1750

Turning Radius (mm): 2000

Start Time (min): ≤5

Stop Time (min): ≤5

Continuous Working Time (min): 60

Power Consumption (kVA): 37

Dimension (mm): Φ5000

Current Collector (optional): 60 ring 500V 5A

Weight (kg): 3000

Power Supply: Three-phase 380V, 50/60Hz

Measure and Control System: IPC control

Standard: GJB150 GJB360 GB/T2423 MIL-STD-810F IEC68-2-7

Working Environment: Temperature range 0~40°C

Humidity range: ≤80% (non condensing)

Remark: The specimen-installed radius, current collector, and control accuracy can be configured according to relevant standard or the requirements of users.

SY-31 Centrifugal Constant Acceleration Tester Catalog
