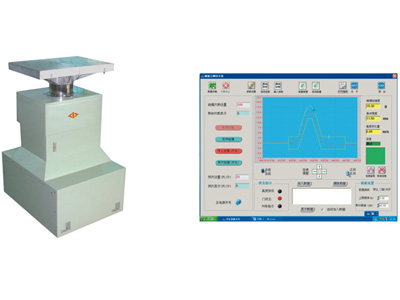

Dongling SY20-100 Shock Bump Tester (100kg, 500x700mm, 50-1000m/s2)
ManufacturerDongling(View more products from this manufacturer)
ModelSY20-100
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Load (kg): 100
Table Size (mm): 500x700
Shock Waveform: Half-sine
Peak Acceleration (m/s2): 50-1000
Pulse Duration (ms): 20-3
Max. Bump Frequency (time/min): 80
Max. Drop Height (mm): 60
Dimension (L×W×H: mm): 920x700x1240
Power Consumption (kVA): 2.2
Weight (kg): 1100
Power Supply: Three-phase 380V, 50Hz
Measure and Control System: Shock DAQ computer-controlled measuring system
Standard: GJB150 GJB360 GB/T2423 IEC68-2-29
Note: Both maximum acceleration and maximum bump frequency are bare-table specifications.
