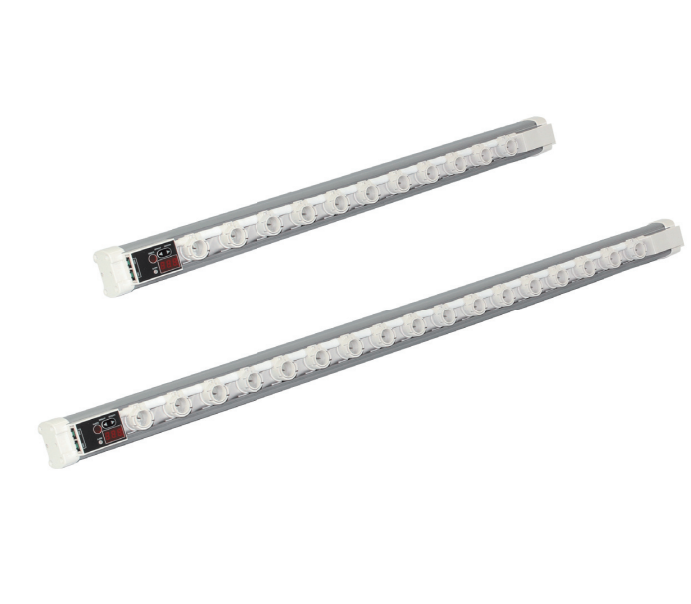

DONG IL (DIT) AMB-L035 Pulsed AC Laminar Flow(Room Ionizer) Ion Bar (±6.5kV; 340mm)

Technical Specifications

Input voltage: DC 24V ±10%

Input current: Max. 300mA

Power consumption: Max. 8W

Emitter voltage:  ±6.5kV

Output frequency: 0.5Hz ~ 10Hz (Adjustable)

Ion generating method: Corona discharge

Voltage application method: Pulsed AC

Material: Body: ABS / Emitter pins: Tungsten

Emitter replacement: Replaceable

Ion balance: Under average ±30V

Coverage distance: 200mm ~ 1500mm

Environmental Conditions

Ozone generation: Under 0.005ppm

Ambient temperature: 0°C ~ +50°C (32°F ~ 122°F)

Ambient humidity: 35% ~ 85%RH (No condensation)

Length: 340mm

Datasheet
