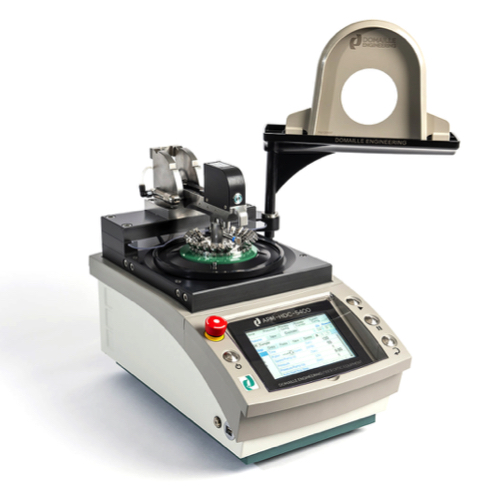

Domaille Engineering APM-HDC-5400 Fiber Optic Polishing Machines (0-24 lbs, 20-200 rpm)

Machine Height: 23.00 inches (438 mm)

Machine Width: 12.00 inches (305 mm)

Overall Width (with Drip tray): 14.50 inches (368 mm)

Machine Depth: 21.50 inches (546 mm)

Power Requirements: 2 amps; 100-240VAC; 50/60 Hz.

Air Requirements: 90-120 psi clean, dry air (6.2-8.3 bar)

Machine Weight: 70 lbs (31.75 kg)

Speed Range: 20-200 rpm

Pressure Range: 0-24 lbs Force (0.2-10.9 kg)

Temperature Range: 41°F-104°F (5°C-40°C)

Maximum Altitude: 6000 feet above sea level (1828M)

Maximum Humidity: 20-85% non-condensing

Noise Emission level: Less than 70.0dBA
