DOLANG DLRB-1410B Robot Machine Loading and Unloading Training System

● Model number: IRB1410B(other brands available)

● Wrist overweight: 5 kg

● Axes: 6-axis

● Max wingspan radius: 1.44m

● Protection grade: IP54

● Installation Way: ground installation

● Positional repeatability: 0.05 mm

● Power supply: three-phase 400V(+10%,-15%),50Hz/60Hz

● Rated power: 4.5KVA

Datasheet

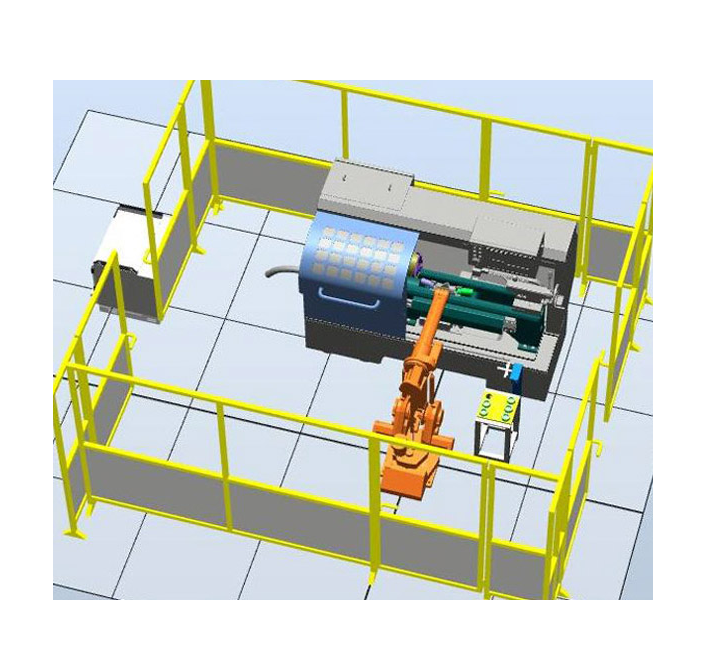

●The robot will grab the workpiece which to be processed and put on the machine to process, after finishing processing, the robot will put the workpieces under the visual system to detect, according to the result put the qualified product to the qualified position, and put the unqualified product to the unqualified position.
