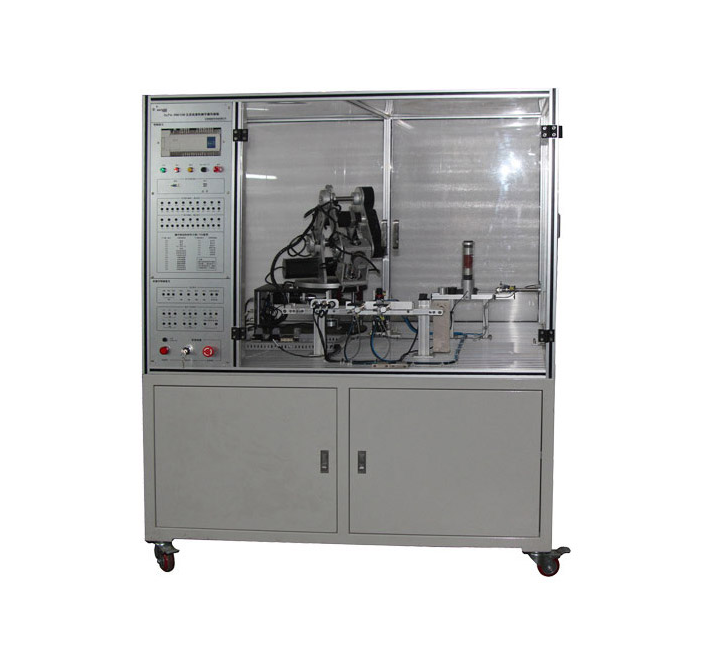

DOLANG DLFA-R501DM Electro Robot Arm

● Structure type: Union joint type

● Drive mode: step drive

● Load capacity: 1Kg

● Actuation range:

J1: 0°~ 180° J2: 0°~ 30° J3 : 0°~ 90°

J4: 0°~ 180° J5: 0°~ 180°

● Gripper: 45—60mm

● The maximum unfold radius: ≥ 700mm

● Height: ≥ 1150mm

● Body weight: ≤ 100Kg

● Operating mode: PLC Programming control, Microcontroller programming control, PC software programming control.

● Power capacity: single-phase 220V 50Hz/60Hz 5A

● Operating temperature: -10℃ ~ 40℃

● Environment humidity: ≤ 90% (25℃ )

● Capacity: ≤ 1KVA

Datasheet

● DLFA-R501DM modular series robot adopts modular design and industry-standard design. Modular, industrialization, openness, multi controllability, and it is a typical mechatronic system.

● The training system consists of distribution unit, five freedom joints manipulator, material sorting and control unit. The control unit supports three control methods: PLC control,MCU control and PC control.
