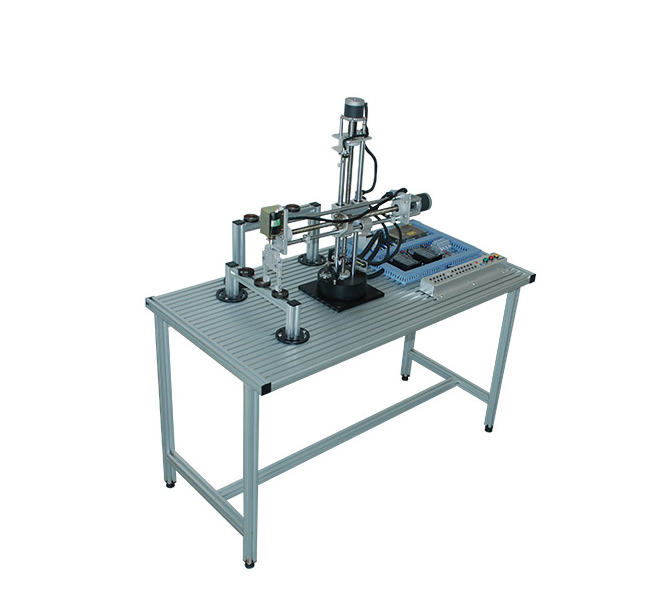

DOLANG DLFA-JXS2 Manipulator Training System

● Total dimension: 1200×750×1500mm

● Input power: single-phase, three-wire AC

220V±10% 50Hz/60Hz

● Output power: DC 24V safety terminal output

● Capacity: < 200VA

■ Optional

● Computer, computer desk

● PLC module

Datasheet

●This system consists of aluminum panel, manipulator body, material storage area, electrical wiring area.

● This system integrated electric system, sensor system, stepper drive and stepper motor, ball screw and optical axis.

● The system leaves PLC connecting port (without PLC),we can do complex switching control, position control, time sequential logic control by PLC programming, and achieve to catch, move, place the workpieces by the manipulator within the scope of the work surface.
