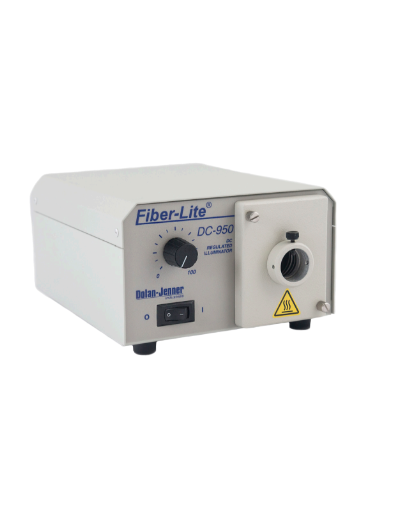

Dolan-Jenner DC-950 Fiber Optic Illuminator

Performance Data

Lamp: EKE 150 Watt, 21 V, quartz halogen

Lamp Output: 1750 Lumens, at fiber optic intersection plane

Electrical Data

Input: 100-240 VAC 50/60 Hz Univ. AC

Fuse: 3 AMP, 250V, Slo-Blow

Physical Description

Dimension: 7.25” x 9.50” x 4.69”

Weight: 11.5 lbs.

Intensity Control: Solid State 0 - 100%

Lighting Properties

Lamp Life: 200 hrs. at full intensity / up to 10,000 hrs. at lower levels

Color Temp:. 3250o Kelvin at max. intensity

Fiber Optic: Interface DC950H - 1.0 in. dia., DC950HB- 15.0 mm. dia.

Light Output Regulation: ± 0.5% or better

Output Ripple: 0.4% or better

Remote Intensity Control: 0-5 VDC analog, optional 8-bit digital, see operating manual for details

Replacement Lamp Socket: (Quick Disconnect) 68600902770
