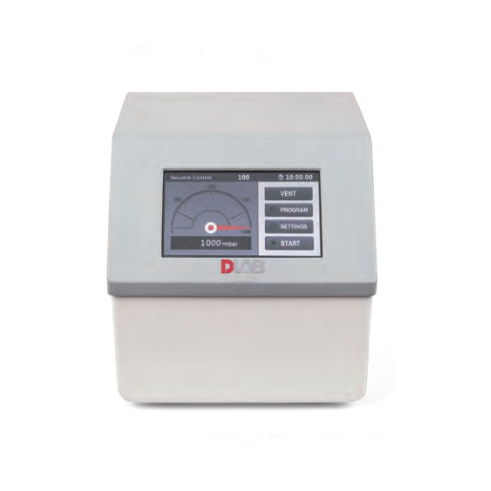

DLAB VC100 Vacuum Controller (1~1000mbar; for Rotary Evaporator)

Vacuum setting range: 1~1000mbar

Vacuum measurement range: 1~1000mbar

Control operation mode:

+ Single-point control mode

+ Programmed control mode

Control program: Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time)

Setting method: Touch screen setting

Display: 5'' TFT

Sensor overload pressure: 1.500mbar

Connector diameter: 8mm

Materials in contact with vapor: PTFE, PP, silicone and ceramics

Power: 600W

Compatible conditions with vacuum pump:

+ Power of 50Hz vacuum pump: ≤400W

+ Power of 60Hz vacuum pump: ≤500W

Overall dimensions (W×D×H): 189×207×193mm

Weight: 4.0kg

Power supply: 110~240V, 50Hz/60Hz

Operating environment: 10~40°C, ≤80%RH

Please choose the EURO plug when ordering:

+ EU plug, 100V~220V/50Hz/60Hz

Datasheet
