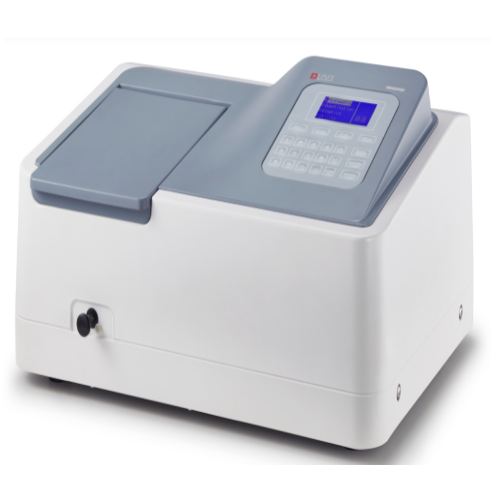

DLAB SP-V1100 Spectrophotometer (320~1100nm; ±0.5nm; 2nm)

Optical system: Single Beam

Light source: Tungsten lamp

Spectral bandwidth: 2nm

Wavelength range: 320~1100nm

Wavelength accuracy: ±0.5nm

Wavelength repeatability: ≤0.3nm

Photometric range: -0.3~3.0A; 0~200%T

Photometric accuracy:

• ±0.002A@0.5A

• ±0.004A@1.0A

• ±0.3%T@100%T

Photometric repeatability:

• ≤0.001A@0.5A

• ≤0.002A@1.0A

• ≤0.15%T@100%T

Stability: ≤0.002A/h @500nm (after preheat 2 hours)

Stray light: ≤0.05%T@360nm

Sample compartment: 4-position, 10mm pathlength cuvette

Display: LCD

Output: USB Port&Parallel Port (Printer)

Power: 110/220VAC, 50/60Hz, 80W

Dimension (L×W×H): 490×360×210mm

Weight: 12kg

Included accessories: 4 glass square cuvettes

Optional accessories: Refer to Datasheet (P.141)

Datasheet
