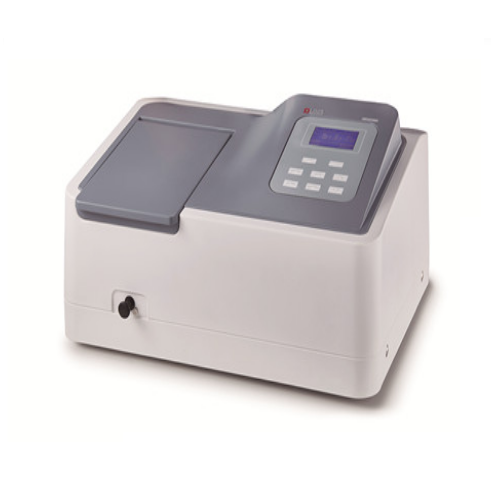

DLAB SP-UV1000 Spectrophotometer (200~1000nm; ±2nm; 4nm)

Optical system: Single Beam

Light source: Tungsten lamp & Deuterium lamp

Spectral bandwidth: 4nm

Wavelength range: 200~1000nm

Wavelength accuracy: ±2nm

Wavelength repeatability: ≤1nm

Photometric range: -0.3~3.0A; 0~200%T

Photometric accuracy:

• ±0.003A@0.5A

• ±0.006A@1.0A

• ±0.5%T@100%T

Photometric repeatability:

• ≤0.0015A@0.5A

• ≤0.003A@1.0A

• ≤0.25%T@100%T

Stability: ≤0.002A/h @500nm (after preheat 2 hours)

Stray light: ≤0.2%T @ 220&360nm

Sample compartment: 4-position, 10mm pathlength cuvette

Display: LCD

Output: USB Port & Parallel Port (Printer)

Power: 110/220VAC, 50/60Hz, 80W

Dimension (L×W×H): 490×360×210mm

Weight: 14kg

Included accessories: 4 glass square cuvettes & 2 quartz square cuvettes

Optional Accessories: Refer to Datasheet (P.141)
