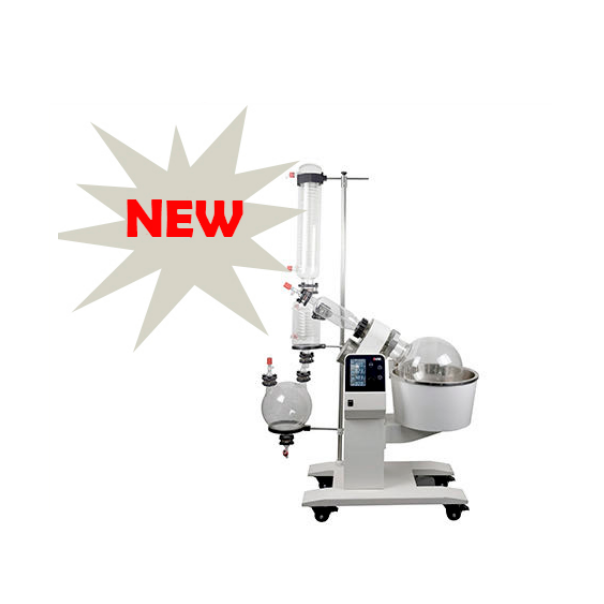

DLAB RE200-Pro Main Unit Industrial Digital Rotary Evaporator (20L; 10~150rpm)

Temperature range: Room temp. ~180°C (both water and oil)

Control accuracy: Water: ±1°C; Oil: ±3°C

Rotation speed: 10~150rpm

Evaporation capacity: Max.4.0L/h (water vapor volume)

Ultimate vacuum: <2.6hpa

Temperature control method: Micro processer PID control

Display: LCD (temperature/speed/clockwise and Anti-clockwise/time)

Stroke displacement: Automatic 180mm

Safety features:

+ Motor over-current protection

+ Residual Current Device

+ Lifting overload protection

+ Boil-dry protection

+ Over-temperature protection

Sample flask: Round flask 20L

Receiving flask: Round flask 10L with drain valve

Condenser: Two-section vertical triple serpentine condenser, cooling surface 1.2m2

Heating bath size: φ450×240mm

Takeover caliber:

+ Cooling/suction nozzle outer diameter 16mm

+ Vacuum pump nozzle outer diameter 16mm

Dimension (D×W×H): 1160×600×1860mm

Power supply: 220V/4600W/50/60Hz
