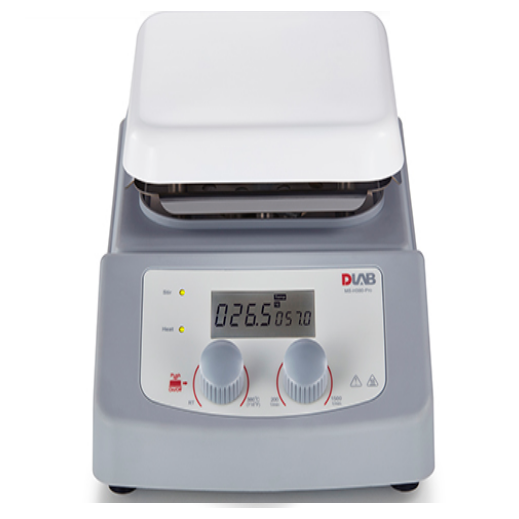

DLAB MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer (200~1500rpm; ~380°C)

Work plate dimension (WxD): 140x140mm

Work plate material: Aluminum cover with ceramic coating

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 5L

Max. magnetic bar (length): 50mm

Speed range: 200~1500rpm

Speed display: LCD

Temperature display: LCD

Heating temperature range: Room temp.+5°C~380°C

Overheating protection: 420°C

Temperature display accuracy: ±0.1°C

External temperature sensor: PT1000 (accuracy: ±0.5°C)

Control accuracy of sensor: ±20rpm Protection class: IP21

Motor rating input: 2.4W

Motor rating output: 1.8W

Power: 510W

Heating output: 500W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 320x180×108mm

Weight: 2.2kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose the EURO plug when ordering:

+ Euro plug, 200V~240V/50Hz/60Hz

Datasheet
