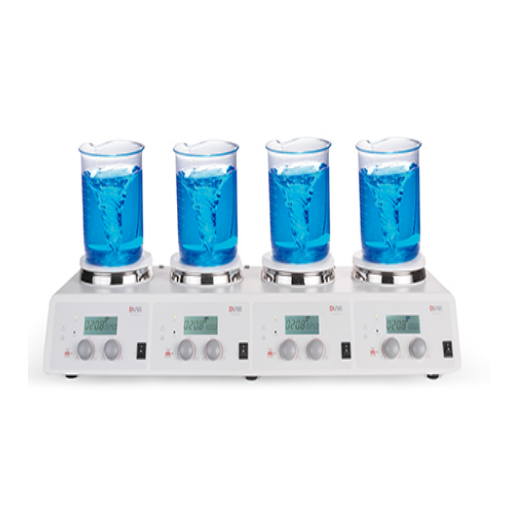

DLAB MS-H340-S4 LCD 4-Channel Digital Magnetic Hotplate Stirrer (200~1500rpm; 25~340°C)

Work plate dimension (WxD): φ135mm (5 inch)

Work plate material: stainless steel cover with ceramic

Motor type: Brushless DC motor

Stirring positions: 4

Max. stirring quantity (H2O): 10L

Max. magnetic bar (length): 40mm

Speed range: 200~1500rpm

Speed display: LCD

Temperature display: LCD

Control accuracy of sensor: ±20rpm

Temperature range: 25~340°C

Overheating protection: 420°C

Temperature display accuracy: ±0.1°C

External temperature sensor: PT1000 (accuracy: ±0.2°C)

Protection class: IP21

Motor rating input: 1.8W ×4

Power: 515W×4

Heating output: 500W×4

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 698× 270× 128mm

Weight: 9.5kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose the EURO plug when ordering:

+ Euro plug, 200V~240V/50Hz/60Hz
