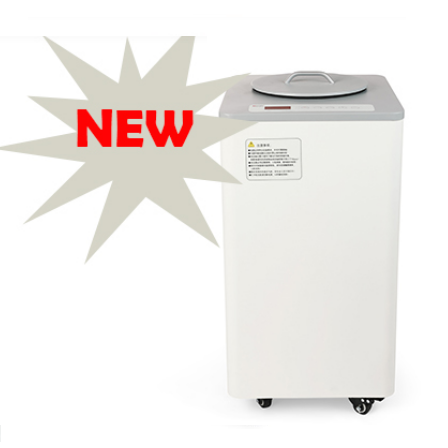

DLAB CCP5-20 Low Temperature Circulator for Rotary Evaporator (5L; 700W; -20°C~Room temperature)

Range of temperature control: -20°C ~Room temperature

Temperature adjustment accuracy: 0.1°C

Temperature control accuracy

±1°C (-20°C~0°C)

±0.5°C (0°C~20°C)

Reservoir capacity: 5L

Range of temperature adjustment:

-30°C~30°C

Temperature display: LED

Type of temperature sensor: PT1000

Compressor refrigerant: R290

Circulating pump throughput: 12L/min

Pump pressure: 0.6 bar

Circulating pump head: 6m

In-out cycle interface: 12mm pagoda-type interface

RS232 interface: Yes

Machine power: 700W

Maximum overall dimensions: 440x460x730 (mm) with caster

Weight: 50kg

Power supply: 220V/110 50Hz/60Hz

Operating environment 10~40°C, RH≤80%

Please choose the EURO plug when ordering:

+ EU plug, 220V; 50Hz/60Hz

Datasheet
