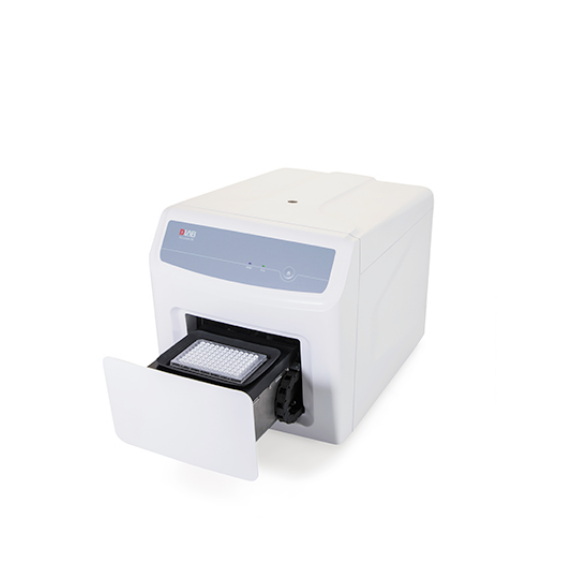

DLAB Accurate96-x4 Fluorescence Quantitative PCR Analyzer (4 channels)

Temperature control system

Sample capacity: 0.1ml PCR tubes×96, 8×12PCR plate or 96 well plate×1

Reaction volume: 10~50 μl

Thermal cycle technology: Peltier

Max. Heating/Cooling rate: 6.0°C/s

Heating temperature range: 4~100°C

Temperature accuracy: ±0.2°C

Temperature uniformity: ±0.2°C @60°C, ±0.2°C @95°C

Temperature gradient setting range: 30~100°C

Temperature gradient difference setting range: 1~36°C

Detection system

Excitation light source: 5/6 monochrome high efficiency LEDs

Detection device: PMT

Detection mode: Time-resolved signal separating technology

Excitation/detection wavelength range: 455~650nm/510~715nm

Fluorescent channels: 4 channels

Supported dye: FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ

Sensitivity: Single copy gene

Resolution: 1.33 folds copy number difference can be distinguished in single-plex qPCR

Dynamic range: 10 orders of magnitude copies

Please choose the EURO plug when ordering: EU plug, 200V~240V/50Hz/60Hz
