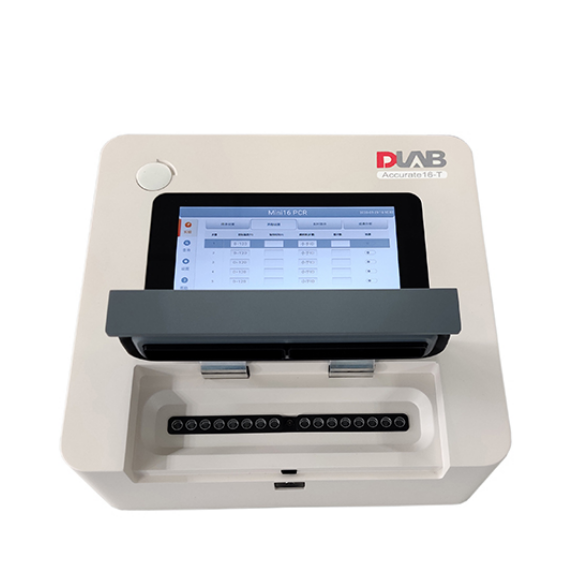

DLAB Accurate16-T Mini Quantitative PCR Analyzer (10~50μl)

Sample capacity: 2x8 0.2ml tube/strips, clear

Reaction volume: 10~50μl

Touch screen: Yes

Thermal cycle technology: Peltier, liquid circulation refrigeration

Max. Heating/Cooling rate: 6.0°C/s

Heating temperature range: 4~100°C

Temperature accuracy: ±0.2°C

Temperature uniformity: ±0.2°C @60°C; ±0.3°C @95°C

Excitation light source: Monochrome high efficiency LED

Detection device: PMT

Detection mode: Fast hole-by-hole scanning

Fluorescent channels:

+ Standard: FAM/ SYBR, VIC/HEX/ TET

+ Optional: ROX, CY5/TAMRA

Sensitivity: Single copy gene

Dynamic range: 10 orders of magnitude copies

Analysis mode: CT value analysis, absolute quantitative analysis

Dimension (W×D×H): 205×190×98mm

Power supply: 100~240V or Optional 12V, 10A mobile power

Weight: 4kg

Please choose the EURO plug when ordering: EU plug 100V~240V/50Hz/60Hz
