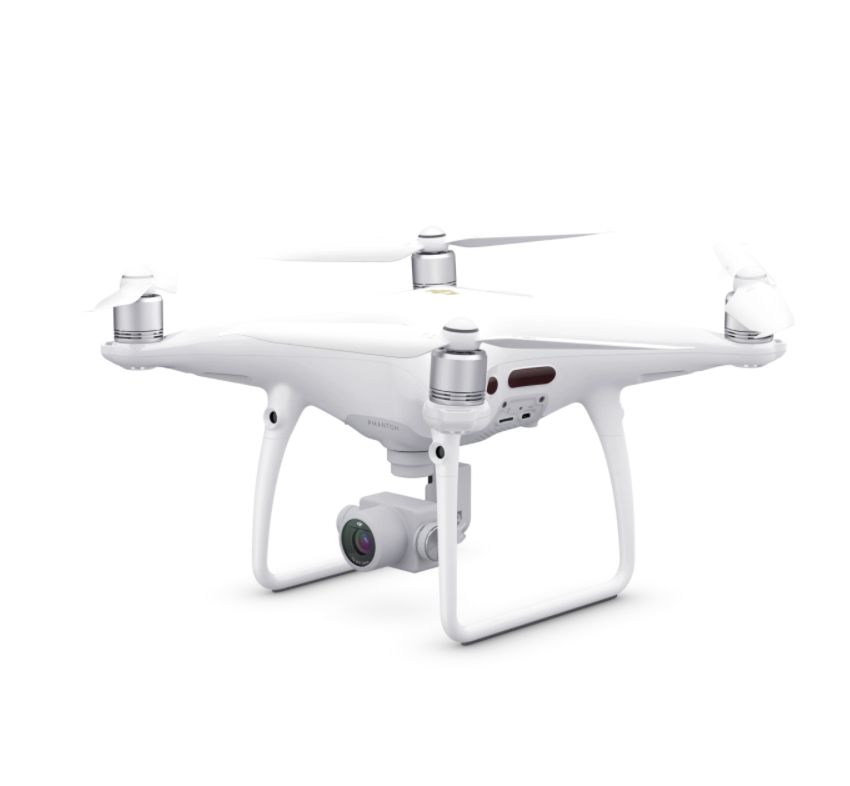

DJI Phantom 4 Pro V2.0 Quieter Flight and Updated Transmission System

Aircraft

Weight (Battery & Propellers Included): 1375 g

Diagonal Size (Propellers Excluded): 350 mm

Max Ascent Speed

S-mode: 6 m/s

P-mode: 5 m/s

Max Descent Speed

S-mode: 4 m/s

P-mode: 3 m/s

Max Speed

S-mode: 45 mph (72 kph)

A-mode: 36 mph (58 kph)

P-mode: 31 mph (50 kph)

Max Tilt Angle

S-mode: 42°

A-mode: 35°

P-mode: 25°

Max Angular Speed

S-mode: 250°/s

A-mode: 150°/s

Max Service Ceiling Above Sea Level: 19685 ft (6000 m)

Max Wind Speed Resistance: 10 m/s

Max Flight Time: Approx. 30 minutes

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Satellite Positioning Systems: GPS/GLONASS

Hover Accuracy Range

Vertical:

±0.1 m (with Vision Positioning)

±0.5 m (with GPS Positioning)

Horizontal:

±0.3 m (with Vision Positioning)

±1.5 m (with GPS Positioning)

Gimbal: Stabilization 3-axis (pitch, roll, yaw)

Controllable Range: Pitch: -90° to +30°

Max Controllable Angular Speed: Pitch: 90°/s

Angular Vibration Range: ±0.02°

Vision System

Vision System

Forward Vision System

Backward Vision System

Downward Vision System

Velocity Range

≤31 mph (50 kph) at 6.6 ft (2 m) above ground

Altitude Range

0-33 ft (0-10 m)

Operating Range

0-33 ft (0-10 m)

Obstacle Sensory Range

2-98 ft (0.7-30 m)

FOV

Forward: 60° (Horizontal), ±27° (Vertical)

Backward: 60° (Horizontal), ±27° (Vertical)

Downward: 70° (Front and Rear), 50° (Left and Right)

Measuring Frequency

Forward: 10 Hz

Backward: 10 Hz

Downward: 20 Hz

Operating Environment

Surface with clear pattern and adequate lighting (lux>15)

Infrared Sensing System

Obstacle Sensory Range: 0.6-23 feet (0.2-7 m)

FOV: 70° (Horizontal), ±10° (Vertical)

Measuring Frequency: 10 Hz

Operating Environment

Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)

Camera

Sensor

1-inch CMOS

Effective pixels: 20M

Lens: FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞

ISO Range

Video:

100-3200 (Auto)

100-6400 (Manual)

Photo:

100-3200 (Auto)

100-12800 (Manual)

Mechanical Shutter Speed: 8-1/2000 s

Electronic Shutter Speed: 8-1/8000 s

Image Size

3:2 Aspect Ratio: 5472×3648

4:3 Aspect Ratio: 4864×3648

16:9 Aspect Ratio: 5472×3078

PIV Image Size

4096×2160 (4096×2160 24/25/30/48/50p)

3840×2160 (3840×2160 24/25/30/48/50/60p)

2720×1530 (2720×1530 24/25/30/48/50/60p)

1920×1080 (1920×1080 24/25/30/48/50/60/120p)

1280×720 (1280×720 24/25/30/48/50/60/120p)

Still Photography Modes

Single Shot

Burst Shooting: 3/5/7/10/14 frames

Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias

Interval: 2/3/5/7/10/15/20/30/60 s

Video Recording Modes

H.265

C4K: 4096×2160 24/25/30p @100Mbps

4K: 3840×2160 24/25/30p @100Mbps

2.7K:2720×1530 24/25/30p @65Mbps

2.7K: 2720×1530 48/50/60p @80Mbps

FHD: 1920×1080 24/25/30p @50Mbps

FHD: 1920×1080 48/50/60p @65Mbps

FHD: 1920×1080 120p @100Mbps

HD:1280×720 24/25/30p @25Mbps

HD: 1280×720 48/50/60p @35Mbps

HD: 1280×720 120p @60Mbps

H.264

C4K: 4096×2160 24/25/30/48/50/60p @100Mbps

4K: 3840×2160 24/25/30/48/50/60p @100Mbps

2.7K: 2720×1530 24/25/30p @80Mbps

2.7K: 2720×1530 48/50/60p @100Mbps

FHD: 1920×1080 24/25/30p @60Mbps

FHD: 1920×1080 48/50/60 @80Mbps

FHD: 1920×1080 120p @100Mbps

HD: 1280×720 24/25/30p @30Mbps

HD: 1280×720 48/50/60p @45Mbps

HD: 1280×720 120p @80Mbps

Max Video Bitrate: 100 Mbps

Supported File Systems: FAT32 (≤32 GB); exFAT (>32 GB)

Photo: JPEG, DNG (RAW), JPEG + DNG

Video: MP4/MOV (AVC/H.264; HEVC/H.265)

Supported SD Cards: microSD

Max Capacity: 128 GB

Write speed ≥15MB/s, Class 10 or UHS-1 rating required

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Remote Controller

Operating Frequency: 2.400-2.483 GHz and 5.725-5.850 GHz

Max Transmission Distance: 2.400-2.483 GHz, 5.725-5.850 GHz (Unobstructed, free of interference)

FCC: 10000 m

CE: 6000 m

SRRC: 6000 m

MIC: 6000 m

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Battery: 6000 mAh LiPo 2S

Transmitter Power (EIRP): 2.400-2.483 GHz

FCC: 26 dBm

CE: 20 dBm

SRRC: 20 dBm

MIC: 17 dBm

5.725-5.850 GHz

FCC: 26 dBm

CE: 14 dBm

SRRC: 20 dBm

MIC: -

Operating Current/Voltage

1.2 A@7.4 V

Video Output Port

GL300K: HDMI

GL300L: USB

Mobile Device Holder

GL300K: Built-in display device (5.5-inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM)

GL300L: Tablets and smart phones

Charger

Voltage: 17.4 V

Rated Power: 100 W

Intelligent Flight Battery

Capacity: 5870 mAh

Voltage: 15.2 V

Battery Type: LiPo 4S

Energy: 89.2 Wh

Net Weight: 468 g

Charging Temperature Range: 41° to 104°F (5° to 40°C)

Max Charging Power: 160 W

App / Live View

Mobile App

DJI GO 4

Live View Working Frequency: 2.4 GHz ISM, 5.8 GHz ISM

Live View Quality: 720P @ 30fps, 1080P @ 30fps

Latency: 220 ms (depending on conditions and mobile device)
