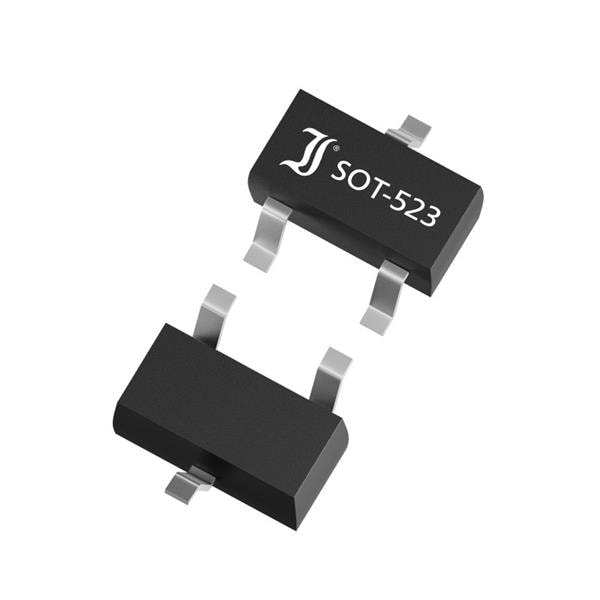

Diotec Semiconductor MMDTC124EE-AQ Digital Transistors Digital Transistor, SOT-523, 50V, 30mA, AEC-Q101

Unit Weight: 30 mg

Configuration: Single

Qualification: AEC-Q101

Mounting Style: SMD/SMT

Output Voltage: 50 V

Transistor Polarity: NPN

Pd - Power Dissipation: 150 mW

Typical Input Resistor: 22 kOhms

Continuous Collector Current: 30 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

DC Collector/Base Gain hfe Min: 56 at 5 mA, 5 V

Collector- Emitter Voltage VCEO Max: 50 V
