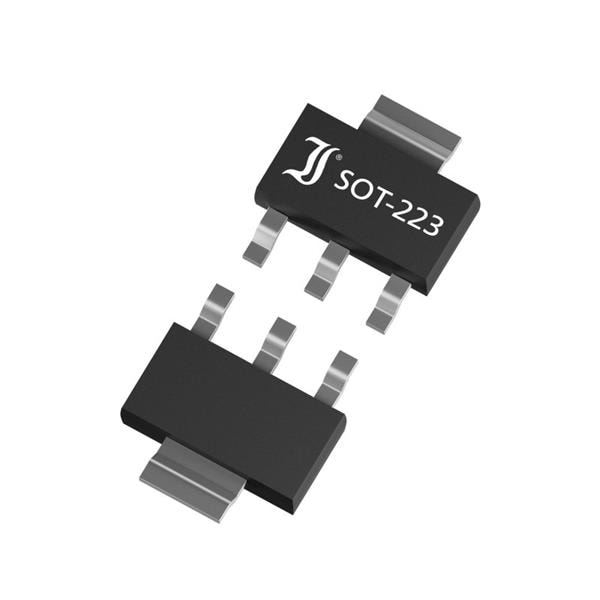

Diotec Semiconductor LDI1117-ADH LDO Voltage Regulators VR, SOT-223, 20V, 1.25V, 13.65V

Polarity: Positive

Tolerance: 1 %

Output Type: Adjustable, Fixed

Unit Weight: 200 mg

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 1.25 V to 13.65 V

Dropout Voltage: 1 V

Line Regulation: 0.2 %/V

Load Regulation: 0.4 %/V

Number of Outputs: 1 Output

Quiescent Current: 5 mA

Moisture Sensitive: Yes

Input Voltage - Max: 20 V

Dropout Voltage - Max: 1.25 V

Maximum Operating Temperature: + 150 C

PSRR / Ripple Rejection - Typ: 50 dB
