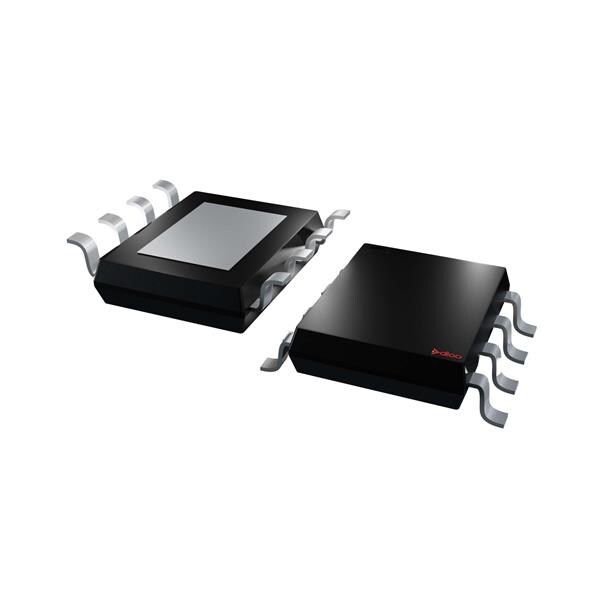

DIOO DIO6071XS8 Synchronous Buck Converter 3-way Power Management Chip with 36V Buck &18V Boost

Shutdown: Shutdown

Topology: Boost, Buck

Input Voltage: 8.2 V to 36 V

Mounting Style: SMD/SMT

Output Current: 500 mA, 500 mA, 70 mA

Output Voltage: 3.1 V,3 V to 24 V, 2.55 V

Load Regulation: Not Regulated

Number of Outputs: 1 Output

Quiescent Current: 500 uA

Input Voltage - Max: 36 V

Input Voltage - Min: 8.2 V

Switching Frequency: 630 kHz, 1 MHz

Supply Voltage - Min: 8.2 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
