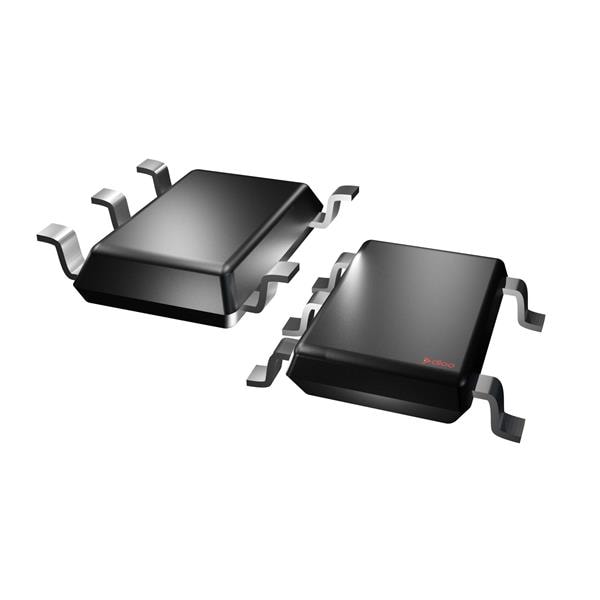

DIOO DIO2361LASC5 Operational Amplifiers 110kHz, 7uA, Operational Amplifier

Shutdown: No Shutdown

Input Type: CMOS

Output Type: Rail to Rail

Amplifier Type: Low Power Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 80 mV/us

THD plus Noise: 0.33 %

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Ib - Input Bias Current: 10 pA

Operating Supply Current: 7 uA

Ios - Input Offset Current: 10 pA

Vos - Input Offset Voltage: 10 uV

GBP - Gain Bandwidth Product: 110 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 100 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 130 dB

PSRR - Power Supply Rejection Ratio: 100 dB
