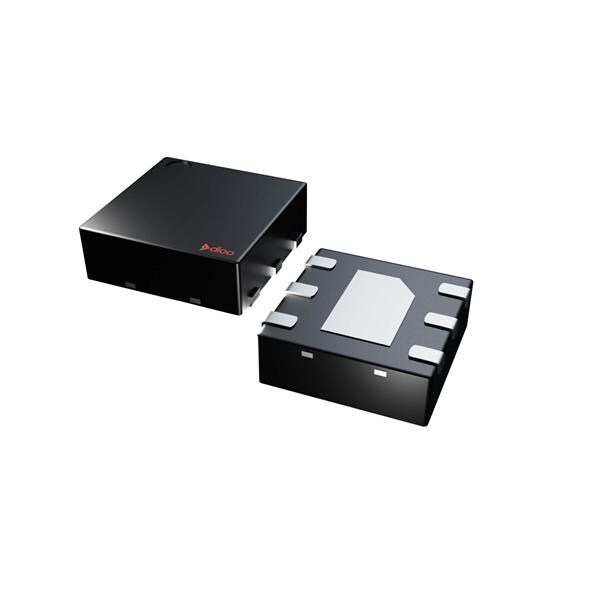

DIOO DIO20491DN6 Operational Amplifiers 4uA Rail-to-Rail Input/Output CMOS Operational Amplifier

Shutdown: Shutdown

Input Type: CMOS

Output Type: Rail to Rail

Mounting Style: SMD/SMT

SR - Slew Rate: 70 mV/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Ib - Input Bias Current: 1 pA

Operating Supply Current: 4 uA

Ios - Input Offset Current: 1 pA

Vos - Input Offset Voltage: 850 uV

GBP - Gain Bandwidth Product: 150 kHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 103 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 130 dB

PSRR - Power Supply Rejection Ratio: 50 dB
