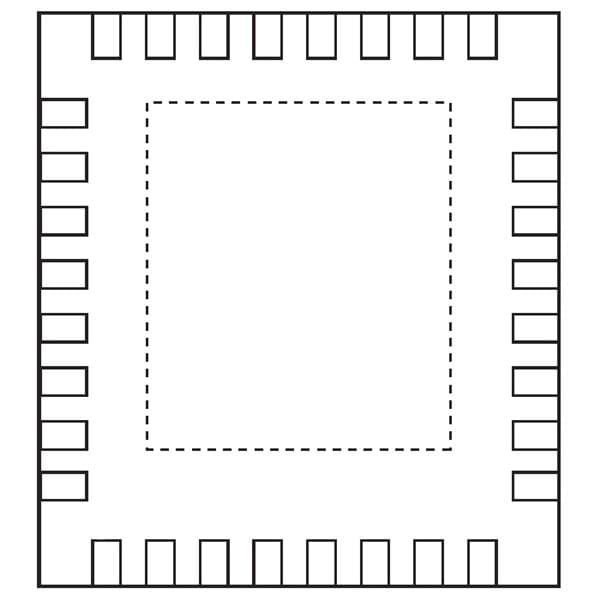

Diodes Incorporated PI4IOE5V96224ZLEX General Purpose 24-bit I2C-bus I/O Expander

Output Type: Open Drain

ESD Protection: 4 kV

Interface Type: I2C, Serial

Mounting Style: SMD/SMT

Number of I/Os: 24 I/O

Output Current: 50 mA

Interrupt Output: With Interrupt

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.3 V

Pd - Power Dissipation: 600 mW

Maximum Clock Frequency: 1 MHz

Operating Supply Current: 250 uA

Operating Supply Voltage: 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
