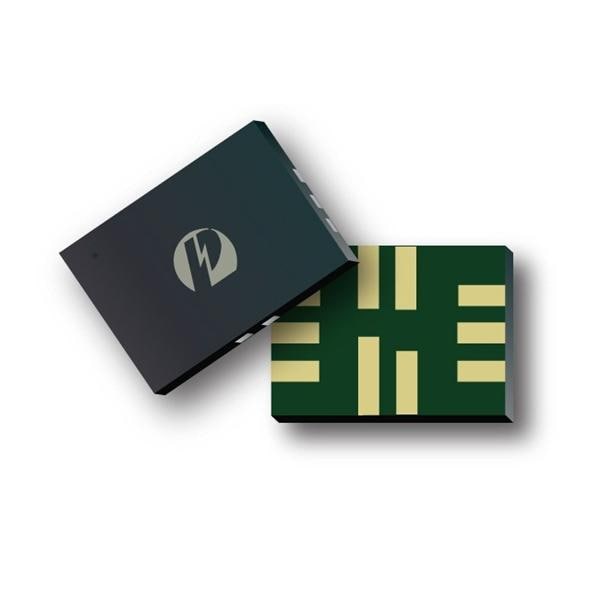

Diodes Incorporated PI3USB102GZLEX USB 2.0 Multiplexers/Demultiplexers USB2.0 switch 2:1 Mux/DeMux

Bandwidth: 1 GHz

Unit Weight: 77.354 mg

Configuration: 1 x 2:1

On Time - Max: 50 ns

Mounting Style: SMD/SMT

Off Time - Max: 11 ns

Number of Switches: 1 Switch

On Resistance - Max: 5 Ohms

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 500 mW (1/2 W)

Operating Supply Current: 1 uA

Operating Supply Voltage: 3 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
