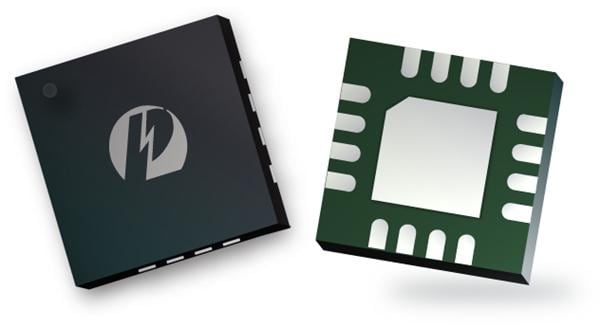

Diodes Incorporated PI3A412ZHEX Analog Switch ICs 4.5V Quad SPDT

Width: 3 mm

Height: 0.75 mm

Length: 3 mm

Supply Type: Single Supply

Configuration: 4 x SPDT

On Time - Max: 13 ns

Mounting Style: SMD/SMT

Off Time - Max: 38 ns

Number of Channels: 4 Channel

On Resistance - Max: 750 mOhms

Supply Current - Max: 1 uA

Supply Voltage - Max: 4.2 V

Supply Voltage - Min: 1.8 V

Pd - Power Dissipation: 500 mW (1/2 W)

Switch Continuous Current: 400 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
