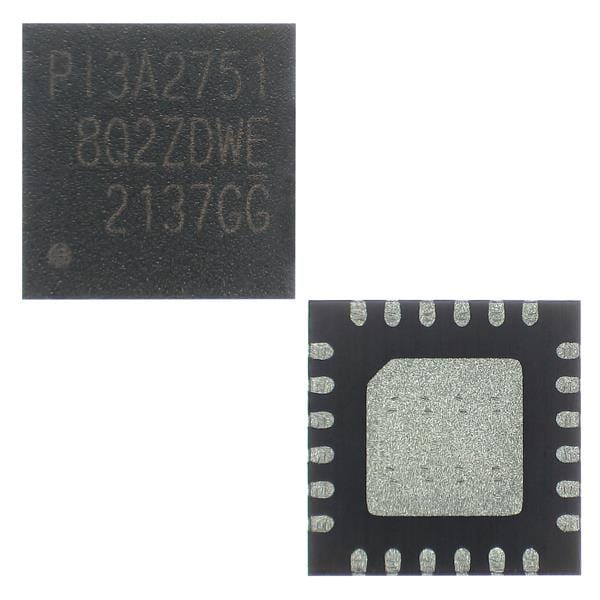

Diodes Incorporated PI3A27518Q2ZDWEX Multiplexers/Demultiplexers Analog Switch 3V-5V V-QFN4040-24 T&R 3.5K

Bandwidth: 380 MHz

Supply Type: Single Supply

Configuration: 6 x 1:2

On Time - Max: 30 ns

Mounting Style: SMD/SMT

Off Time - Max: 30 ns

Number of Channels: 6 Channel

Off Isolation - Typ: - 66 dB

On Resistance - Max: 5.2 Ohms

Supply Current - Max: 3 uA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.65 V

Switch Voltage - Max: 3.6 V

Operating Supply Voltage: 1.65 V to 3.6 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
