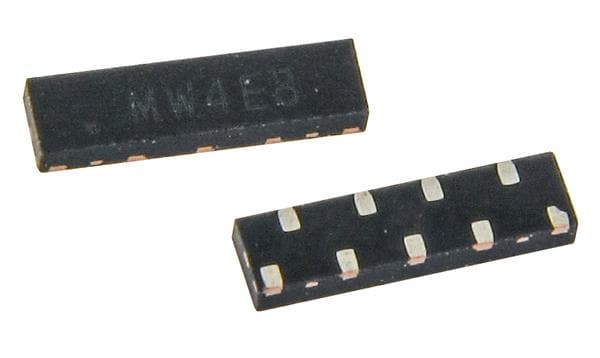

Diodes Incorporated DT1240A-08LP3810-7 ESD Suppressors Dataline Protection PP

Polarity: Unidirectional

Unit Weight: 25 g

Current Rating: 500 nA

Working Voltage: 3.3 V

Clamping Voltage: 10 V

Breakdown Voltage: 5 V

Termination Style: SMD/SMT

Number of Channels: 8 Channel

Vf - Forward Voltage: - 850 mV

Cd - Diode Capacitance: 0.7 pF

Pd - Power Dissipation: 350 mW

Ipp - Peak Pulse Current: 5.5 A

Vesd - Voltage ESD Air Gap: 16 kV

Vesd - Voltage ESD Contact: 14 kV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Pppm - Peak Pulse Power Dissipation: 55 W
