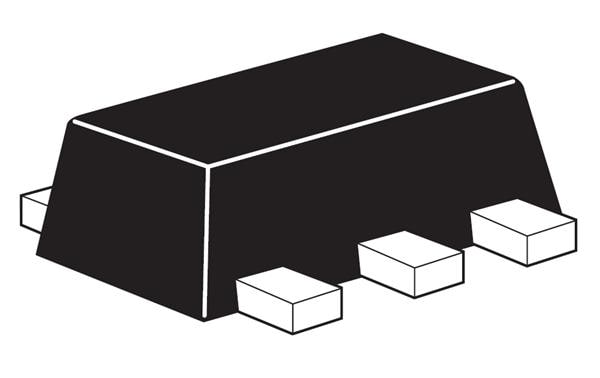

Diodes Incorporated BCV49TA Darlington Transistors NPN Darlington

Width: 2.5 mm

Height: 1.5 mm

Length: 4.5 mm

Unit Weight: 52 mg

Configuration: Single

Mounting Style: SMD/SMT

Transistor Polarity: NPN

Pd - Power Dissipation: 1 W

DC Current Gain hFE Max: 2000

Emitter- Base Voltage VEBO: 10 V

Collector- Base Voltage VCBO: 80 V

Continuous Collector Current: 500 mA

Maximum DC Collector Current: 500 mA

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C

DC Collector/Base Gain hfe Min: 2000 at 0.1 mA at 1 V, 4000 at 10 mA at 5 V, 10000 at 100 mA at 5 V, 2000 at 500 mA at 5 V

Maximum Collector Cut-off Current: 100 nA

Collector- Emitter Voltage VCEO Max: 60 V
