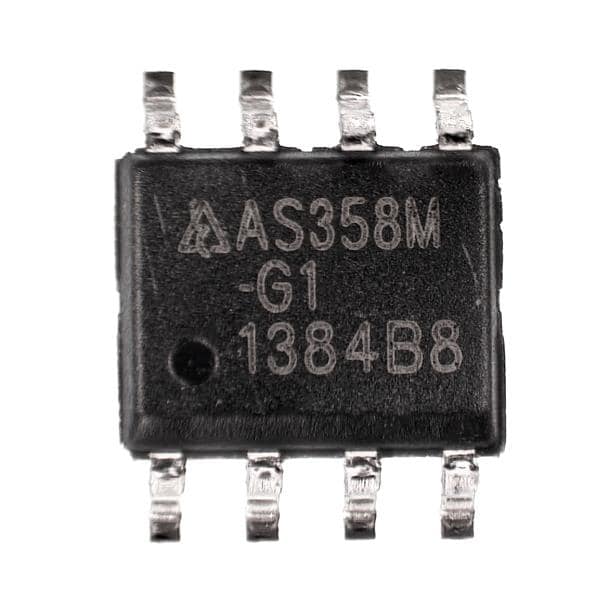

Diodes Incorporated AS358MTR-G1 Operational Amplifiers LP Dual OpAmp 2mV 100dB 20nA 2mV

Shutdown: No Shutdown

Topology: Dual

Output Type: Rail-to-Rail

Amplifier Type: General Purpose Amplifier

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Supply Voltage - Max: 36 V, +/- 18 V

Supply Voltage - Min: 3 V, +/- 1.5 V

Ib - Input Bias Current: 200 nA

Operating Supply Current: 500 uA

Vcm - Common Mode Voltage: 3 V to 34.5 V

Ios - Input Offset Current: 5 nA

Output Current per Channel: 40 mA

Vos - Input Offset Voltage: 2 mV

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: +/- 1.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

CMRR - Common Mode Rejection Ratio: 60 dB

PSRR - Power Supply Rejection Ratio: 100 dB
