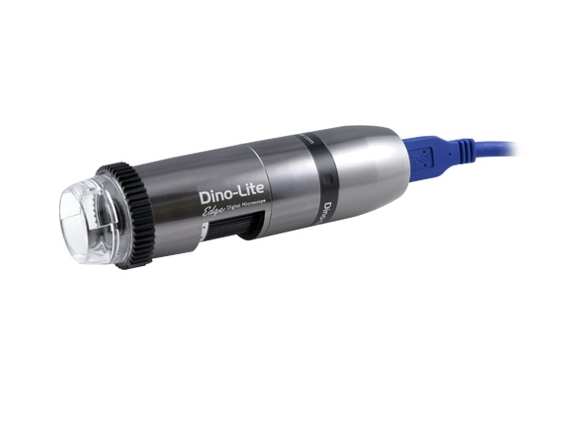

Dino-Lite AM73915MZTL Dino-Lite Edge 3.0 Handheld Digital Microscope (USB) (5M pixels; 10x~140x)

Interface: USB 3.0

Product Resolution: 5M pixels (2560x1920)

Magnification: 10x~140x

Frame Rate:

15fps at 5MP, YUY2 (USB 3.0)

45fps at 1.3MP, YUY2 (USB 3.0)

15fps at 1.3MP, YUY2 (USB 2.0)

Lighting: 8 white LEDs

Polarizer: Yes

Microtouch: Yes

Operating System Supported: Windows 10, 8, 7; Mac OS 10.9 or later (EDOF/EDR are NOT controllable on Mac OS)

System Requirements:

Intel® Core™ i5 3.2GHz

‧ 20GB available HD space

‧ 8GB available RAM or more

‧ 2GB video card or more

‧ CD-ROM drive for installation

‧ USB 3.0 with intel chipset

Calibration Function: Yes

Measurement Function: Yes

Unit Dimension: 11.9cm (H) x 3.3cm (D)

Unit Weight: 110g

Accessory - N3C-R (Ring Light Cap):

Model: N3C-R Ring Light Cap

Compatible Dino-Lite Models: Dino-Lite Edge LWD models (TL, ZTL)

Unit Dimension: 15.5 mm (H) x 65 mm (D)

Materials: Polycarbonate with sputtered aluminum coated

Unit Weight: approx. 8 g
