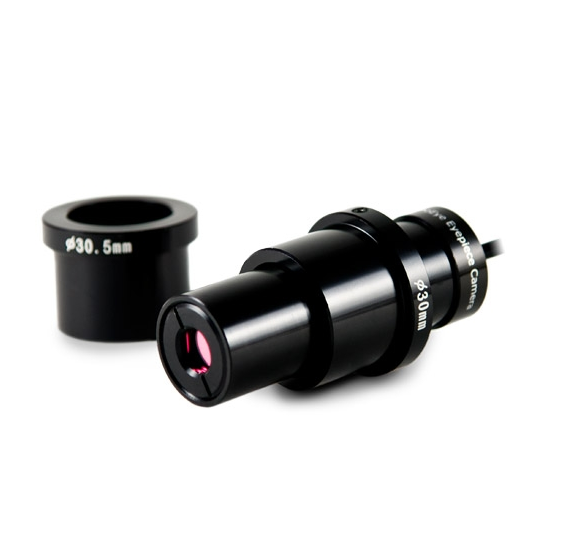

Dino-Lite AM4023X Dino-Eye Dino-Eye Eyepiece Camera (1.3M pixels (SXGA))

Interface: USB 2.0

Product Resolution: 1.3M pixels (SXGA)

Sensor: Color CMOS

Frame Rate: Up to 30fps

-Save Formats:

+ Image:

DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

DinoXcope: PNG, JPEG

+ Movie:

DinoCapture2.0: WMV, FLV, SWF

DinoXcope: MOV

Operating System Supported: Windows 10, 8, 7, Vista, XP; Mac OS 10.4 or later

Calibration Function: Yes

Measurement Function: Yes

Unit Dimension: 48mm (H) x 23mm (D)

Fits 23mm diameter eyepiece slot

Unit Weight: 100g +/- 10g

Package Dimensions: 16cm (L) x 16cm (W) x 6cm (H)
