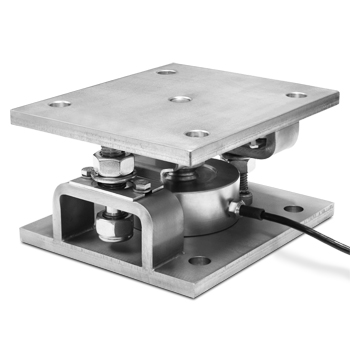

Dini Argeo KCPN10A Load Cell Mount for CPX load cells (7kg, 120kN)

Material: Nickel-plated steel

Weight (kg)

With load cell: 7

Without load cell: 5

Compression safety load

With load cell: 120KN

Without load cell: 45KN

Compression tensile strength

With load cell: Depending on the load cell

Without load cell:55KN

Traction safety load

With load cell: 45KN

Without load cell: 45KN

Traction tensile strength

With load cell: 55KN

Without load cell: 55KN

Safety load across the plate: 20% of the load applied,max 25KN

Tensile strength across the plate: 30% of the load applied,max 35KN.

Maximum tilt angle of support plate: +/-1°
