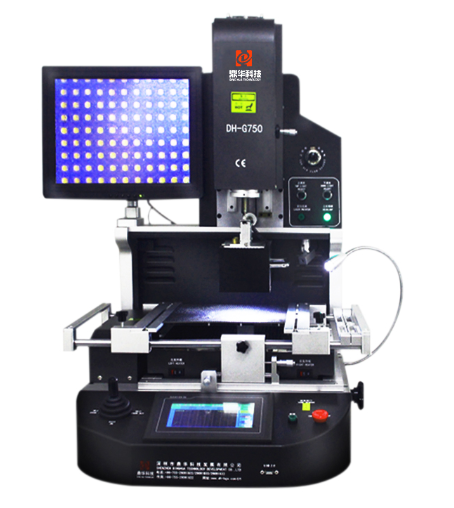

DINGHUA TECHNOLOGY DH-G750 LED rework station (5500W)

Power supply: AC 110~250V 50/60Hz

Rated power: 5500W

Upper heater: 1200W

Lower heater: 1200W

IR power: 3000W

LED feeding: With Feida system

PCB fixed: V-groove+ bracket moved at X-axis, with universal fixtures

Alignment system: HD, automatically focusing, accuracy 0.01mm

Temperature controlling: K-type,closed-loop and PID

Temperature accuracy: +/-1 °C

PCB size: Max 450*500mm Min 10*10mm

LED size: 0603,0305,1210,3528,5050 and all of others

Min spacing: 0.05mm

Temperature port: 1 pcs (optional)

Application: LED display screen and other LED appliance

Dimension: L600*W700*H850

Weight: 70kg
